DIN 41612  Connector

Specifications PDF Description

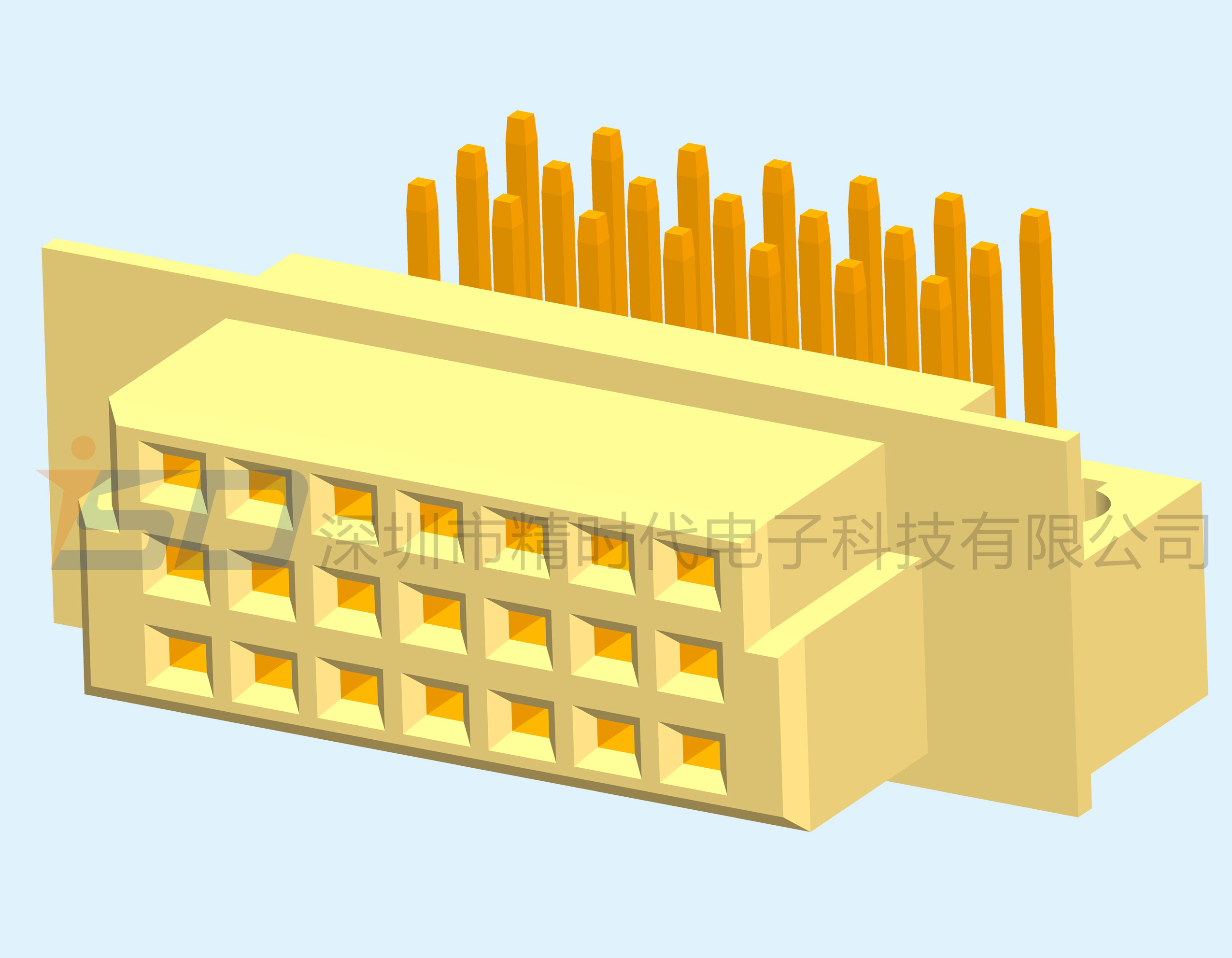

DIN 41612 Connectors Female  Pitch:2.54mm 21 PIN (Triple Row)Right Angle DIP Solder

Product details

1-MATERIAL

Housing:PA6T+30%G.F UL94V-0

ContactBrassPhosphorbronza

2-characteristics:

Raring Current:3 AMP .

Contact Resistance:30MΩ MAX .

Insulating Resistance:1000MΩMIN.

Withstanding Voltage:AC 1000V.

Temperture Range-55℃to +105℃
